5 Signs Your Vehicle’s Electrical Issue is a Connector, Not a Component
It’s a scenario every tech and DIYer knows too well: you diagnose a "bad" alternator or a "failed" cooling fan, swap the part, and… nothing. The issue persists. In the modern automotive world, we are often too quick to blame the "box" (the component) when the "bridge" (the connector) is actually the culprit.
At findpigtails.com, we see this daily. Before you drop hundreds on a new component, check for these five signs that your real problem is a failed electrical connector.
1. The "Wiggle Test" Results
If you can restore power to a component by simply reaching in and nudging the wiring harness, the component itself is likely fine.
- The Cause: This usually indicates poor pin tension. Over time, the female terminals inside a connector can spread apart, losing their "spring" and failing to make a tight connection with the male pins.
- The Fix: If wiggling the wires creates a flicker of life, the internal connection is compromised. It’s time for a replacement pigtail.

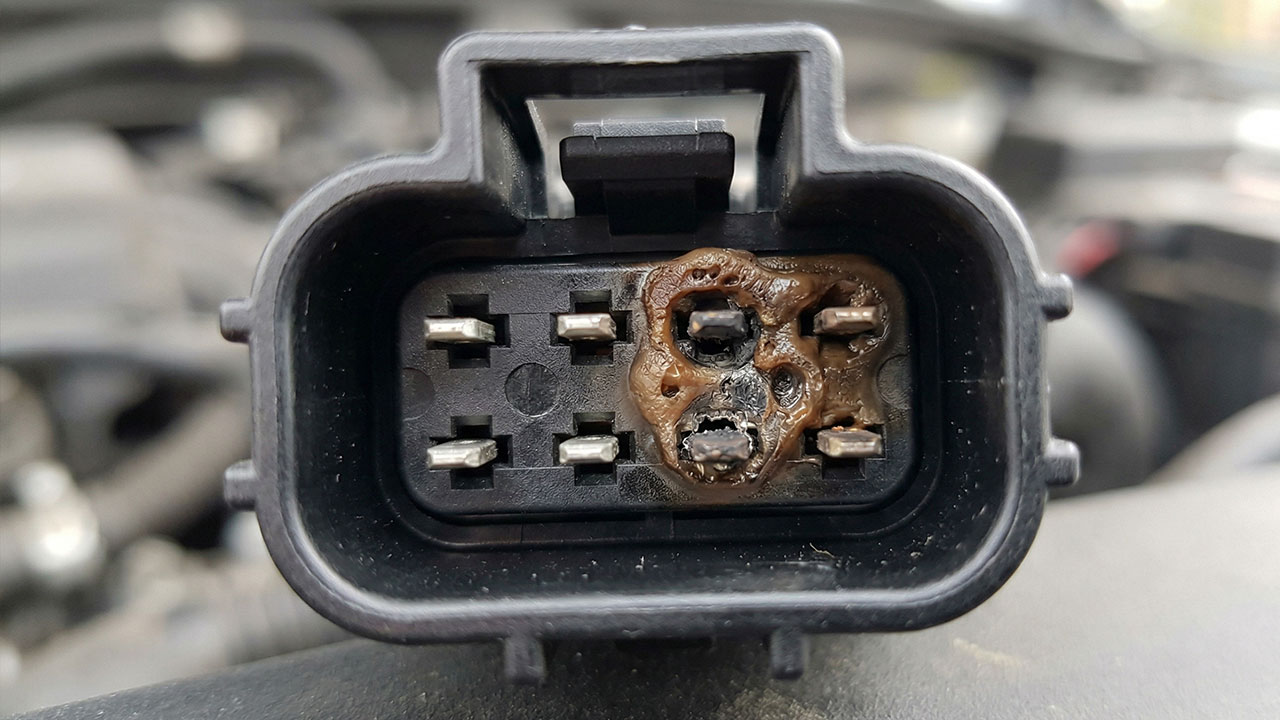

2. Discoloration or "Melting" at the Housing
Plastic should never look like a toasted marshmallow. If you see warping, browning, or melting on the connector housing—especially near the input wires—you have a high-resistance issue.
- The Technical Bit: Resistance creates heat. When a terminal is loose or corroded, electricity struggles to pass through, generating enough heat to melt the connector shell.
- Warning: This is a fire hazard. Even if the component still works occasionally, that connector is a ticking time bomb for the rest of the harness.
3. Green or White "Crust" (Corrosion)
Automotive connectors are often exposed to the harshest environments—road salt, engine degreasers, and moisture.
- Visual Cue: Look for "the green death" (copper oxidation) or white powdery residue inside the plug.
- The Result: Corrosion acts as an insulator, eventually blocking the current entirely. Cleaning it is a temporary band-aid; once the plating on the pins is eaten away, the corrosion will return within weeks.
4. Intermittent Faults During Vibration
Does the CEL (Check Engine Light) only come on when hitting a pothole or idling roughly? Components usually fail "open" or "closed"—they rarely fail specifically because the car moved.
- Connector Clue: Modern engines vibrate significantly. If a connector’s locking tab is broken or the weather seal has degraded, the connector can "micro-move." This creates millisecond-long circuit breaks that drive sensors and ECUs crazy.

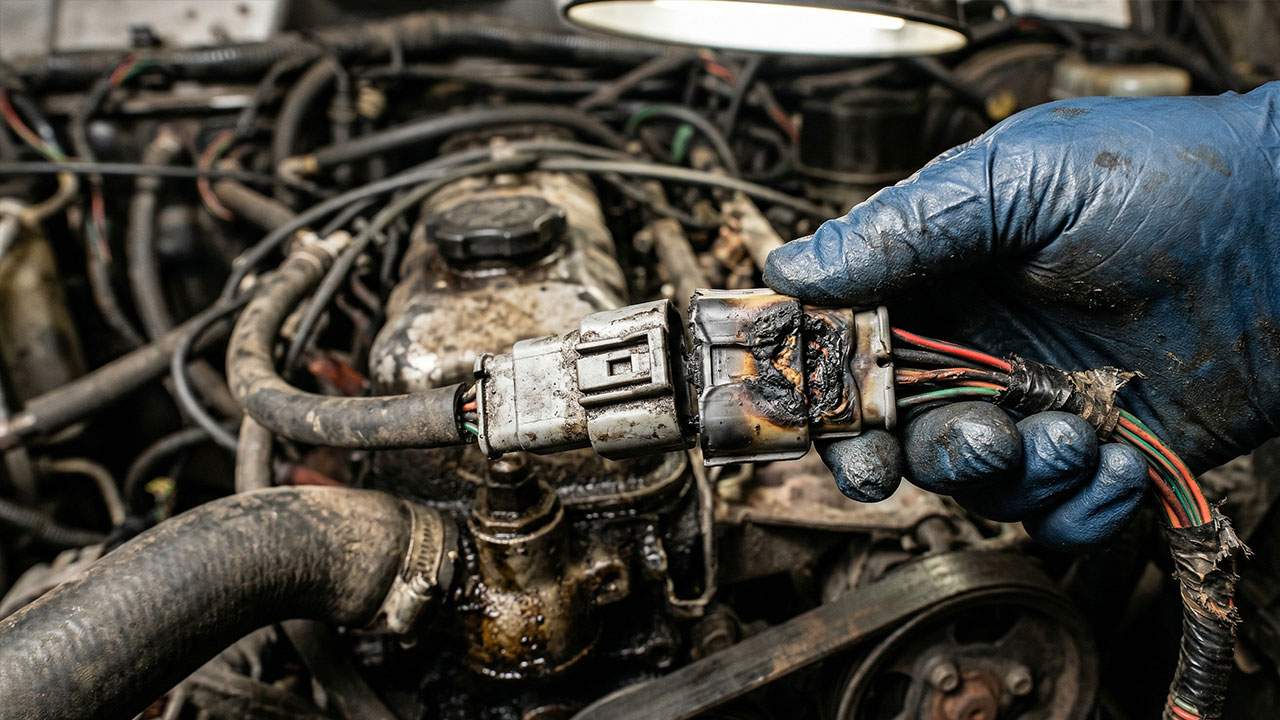

5. Burnt "Electric" Smell
Sometimes your nose finds the problem before your multimeter does. A distinct acrid, ozone, or burning-plastic smell near a specific part of the engine bay often points to an internally arcing connector.
Why a Pigtail is the Professional Solution
When you identify a connector failure, you have two choices: replace the entire vehicle wiring harness (which can cost thousands and take days) or "pigtail" the repair.
A high-quality repair requires more than just a plastic plug. A common mistake is using cheap, universal connectors that don't match OEM specifications. Here is why the pros turn to findpigtails.com:
- OEM Quality & Fit: We provide connectors that match the original factory specifications exactly. No "universal" parts that almost fit—these are designed for your specific year, make, and model.
- Ready for the Job: Every pigtail comes with at least 10 inches of high-quality wire. This gives you plenty of lead to route the repair away from heat sources and ensures you aren't struggling with a "short-reach" splice.
- Longevity: Because our pigtails use premium terminals and seals, the repair is often more durable than the original factory connection.
Before you buy that expensive new component, take a close look at the plug. If you see any of the signs above, head over to our search tool and find the exact match for your vehicle. Save the component, then fix the connection.
