The Ultimate Guide to Identifying and Replacing Automotive Electrical Connectors
If you’ve ever popped the hood of your car to fix a simple electrical issue, you’ve likely run into the "Connector Wall." You know the part you need, that plastic plug that connects the wiring harness to a sensor or light, but you have no idea what it's technically called.
Is it a 2-pin electric plug? A 12V electrical connector? Or just a "thingy"?
Don't worry. Whether you are a mechanic or a DIYer, this guide will break down automotive connector types, how to identify them, and how to find the exact replacement you need.
1. The Basics: Pin Count and Gender
The first step in connector search is looking at the anatomy of the plug. You can't just buy a generic "plug"; you need to know the specifics.
- Pin Count: The number of wires or metal terminals inside. Common searches include a 2-pin connector with wire, a 3-prong electrical connector, or the more complex 8-pin automotive electrical connectors.
- Gender: Connectors are like puzzle pieces. You need to distinguish between a 10-pin male and female connector.
- Male: Usually, the side with the protruding pins (headers).
- Female: The side with the sockets that accept the pins (e.g., a five-pin connector female).
Pro Tip: When searching, specifying the gender is crucial. A 2-pin male connector type search yields very different results than a female version.
2. Common Automotive Applications
Not all connectors are created equal. High-heat areas (like near the engine block) require different materials than interior lights. Here are some standard specific parts you might encounter:
- Lighting: Headlights are notorious for melting plugs. A specific search, like 2013 Dodge Dart headlight connector, is often necessary because manufacturers change plug shapes between model years.
- Sensors & Modules: You might be looking for an ABS module connector (vital for safety) or an ACC compressor pigtail to get your air conditioning running again.
- Heavy Duty: For complex systems, you might encounter a 13-pin DIN connector or a 22-pin connector.
3. Voltage and Power
Most modern cars run on a 12-volt system. When replacing parts, ensure the connector is rated for the correct voltage.
- Standard plugs are often listed as 12V, 2-pin, or generic 12V two-pin.
- For power distribution, you need automotive power connectors.
4. Pigtails vs. Connector Kits
When you find a melted or broken plug, you have two main repair options:
- Pigtails: This is a pre-wired connector. For example, a 2-wire male and female pigtail comes with wires already attached. You splice these wires into your car's harness using automotive wire splicers. This is generally the easiest method for DIYers.

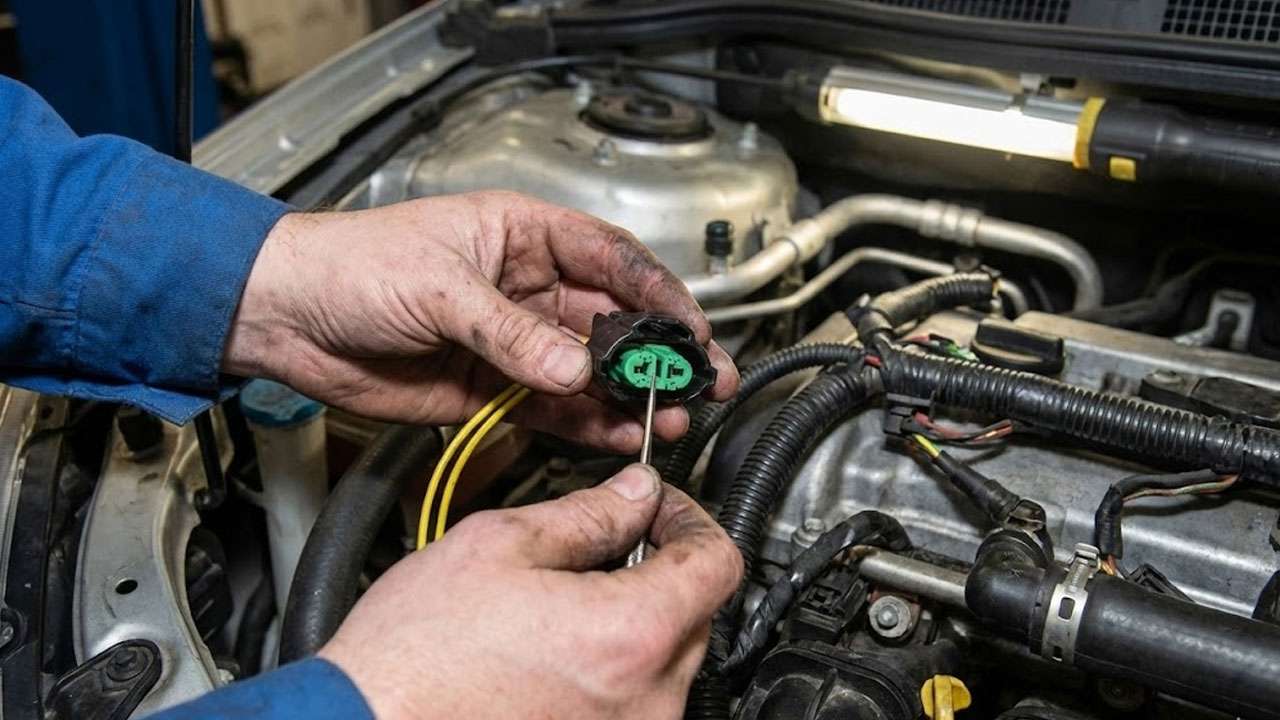

- Connector Kits (Terminals): This involves buying the empty plastic housing and the metal harness pins separately. You crimp the terminal connectors onto your wires and slide them into the housing.
5. The Easy Way: Let Us Find It For You
Searching for "black plastic plug" on Google usually leads to hours of frustration. You might find a part that looks similar, but if the keyway (the guide slots inside) is off by a millimeter, it won't plug in.
This is where FindPigtails.com changes the game. We aren't just a parts store; we are a dedicated connector finder service.
We know that identifying vehicle electrical connectors is difficult, so we built a system to do the heavy lifting for you:
- Snap a Picture: You don't need to know the technical name. Just take a clear photo of your melted or broken plug and upload it to our website or our mobile app.
- Real Experts, No Bots: We have technicians with years of experience standing by. They look at your photo, identify the exact OEM connector matching your vehicle, and send you the link to buy it.
- Live Support: Stuck on a job site? You can call us or live chat instantly. Whether you need a 4-pin cable connector or a complex ABS module connector, we speak the language.
Don't Guess, Snap a Photo
Electrical repairs are precise; there is no room for "close enough." A connector search shouldn't take longer than the repair itself.
Instead of scrolling through thousands of auto electrical plug connectors in the hope of getting lucky, let our team identify it for you.
Why Choose FindPigtails.com?
- Accuracy: We guarantee the fit, so you don't waste money.
- Speed: fast shipping means you get your automotive connector when you need it.
- Simplicity: If you can take a selfie, you can find your part.
Stop stressing over automotive connector types and let us do what we do best. Contact us today, send us your photo, and get your repair back on track!
