5 Critical Vehicle Systems That Depend on Electrical Connectors
Modern cars are packed with tech, including ADAS, cameras, power seats, and climate control, and every system depends on connectors doing their job. In collision repair, we often focus on visible damage, but if you’re not checking the electrical side, you could be missing the real problem.
A single loose pin or corroded connector can cause trouble codes, failed diagnostics, or safety system malfunctions. If you’re working with auto electrical wiring harness repairs, here are five systems where the connector is the fix or the failure.

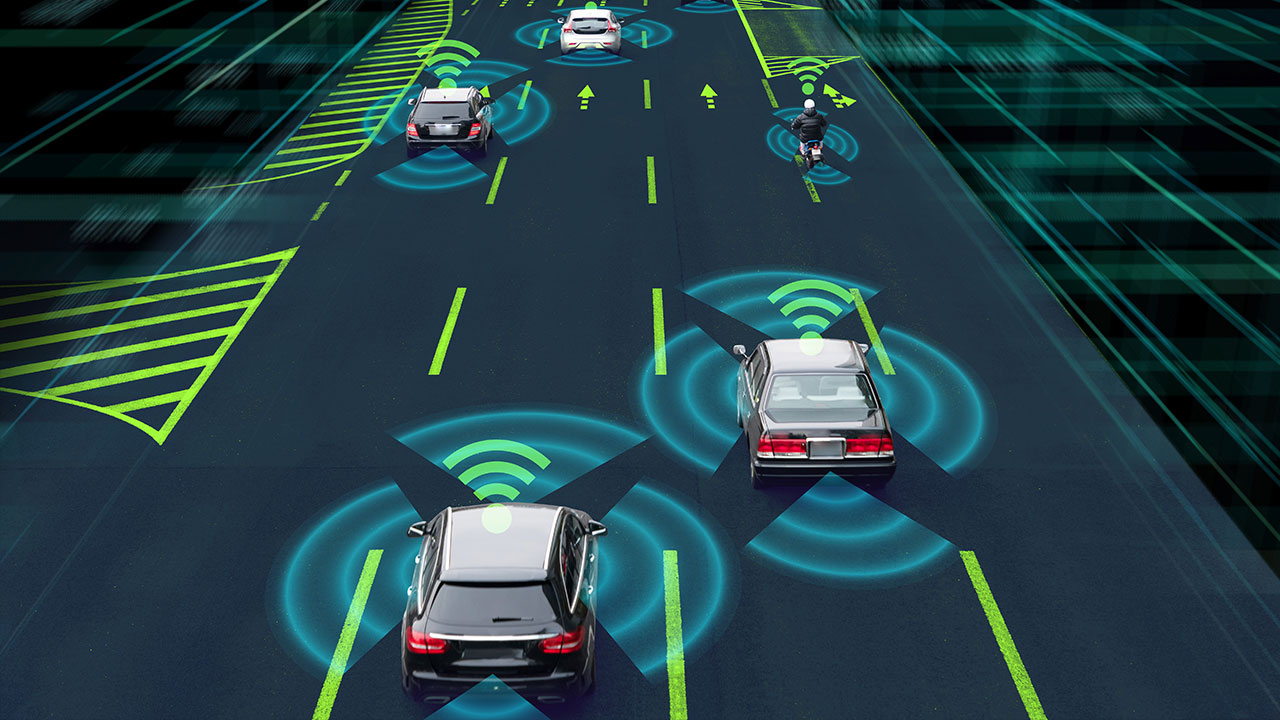

1. ADAS (Advanced Driver-Assistance Systems)
Today's ADAS features, like lane-keep assist, blind spot monitoring, and forward collision warnings, rely on real-time communication between sensors and modules through high-precision connectors.
Common connectors in ADAS systems:
- Radar sensors (front and rear bumpers)
- Windshield-mounted cameras
- Lane assist modules behind grilles
One broken tab or bad seal? Your customer's safety system is offline. This isn't just about getting rid of a warning light; it's about making the car road-safe and fully functional.

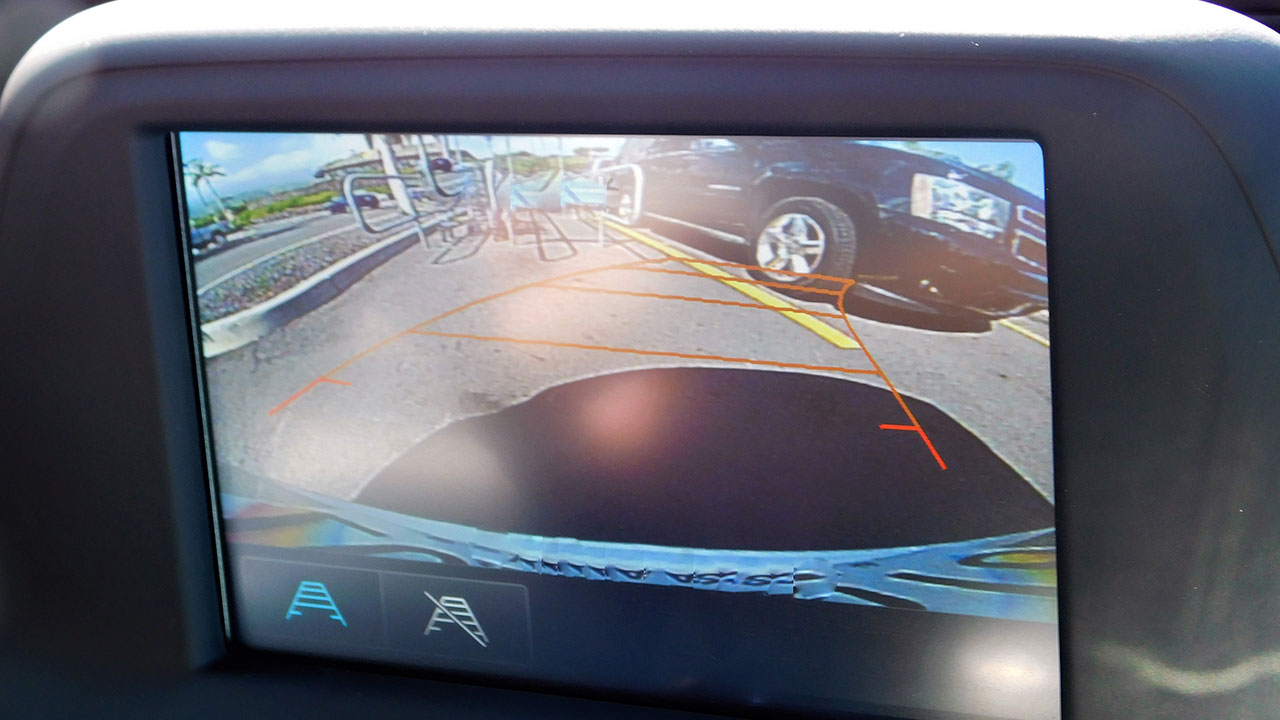

2. Camera Systems (Backup, Blind Spot, 360° View)
From basic backup cameras to complete 360° view setups, cameras are deeply wired into today’s vehicles, especially on newer models like the Toyota RAV4, Honda Civic, and Ford Explorer.
What to inspect:
- Backup camera harnesses (rear bumpers & tailgates)
- Blind spot monitor connectors (inside mirrors)
- Parking assist sensors
These connectors are small, weather-exposed, and not interchangeable. A universal connector won’t give you the exact fit, seal, or reliability, and that’s a comeback waiting to happen.

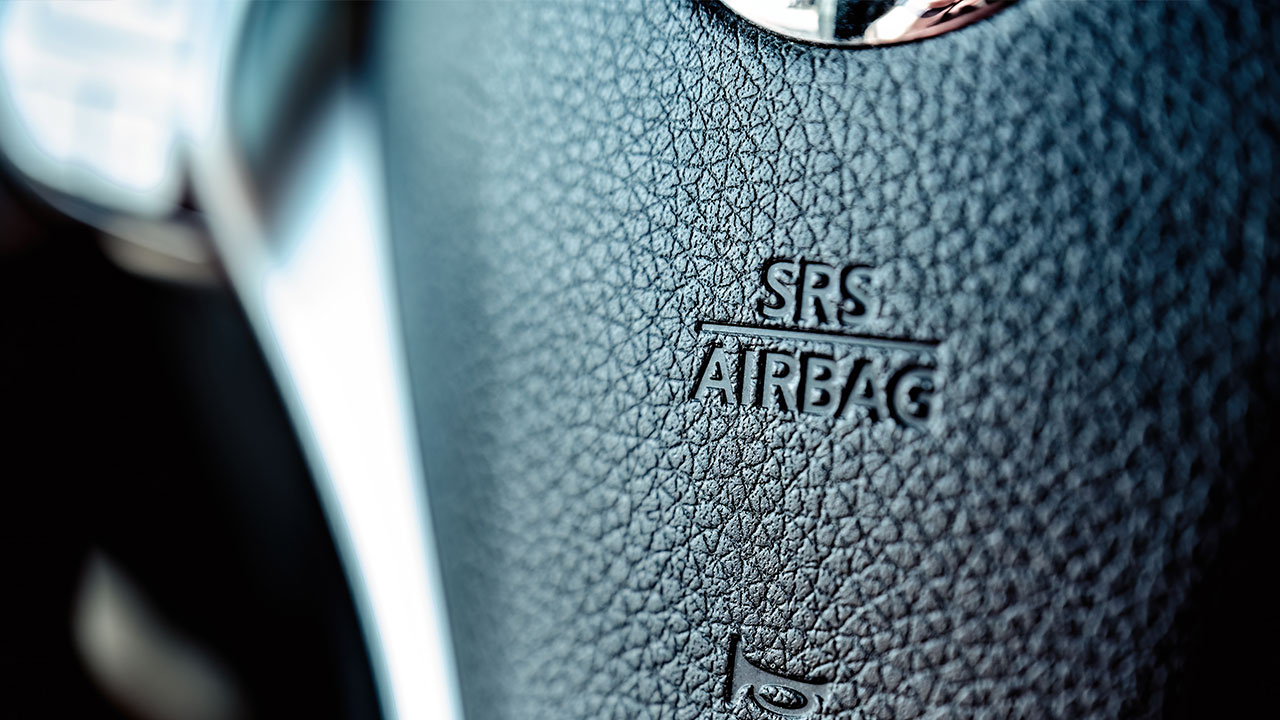

3. Seat Wiring & Occupancy Sensors
Seats are hot zones for connector damage, especially in airbag deployments or water intrusion scenarios. Occupancy sensors are part of the SRS system, and many shops overlook them during post-repair reassembly.
Key connections under the seat:
- Airbag/occupancy sensors
- Seat position sensors
- Power adjust/memory seat motors
- Heated and ventilated seat elements
Pro tip: Always inspect connectors before reinstalling seats. A damaged seat pigtail = an SRS fault; you’ll have to explain later.

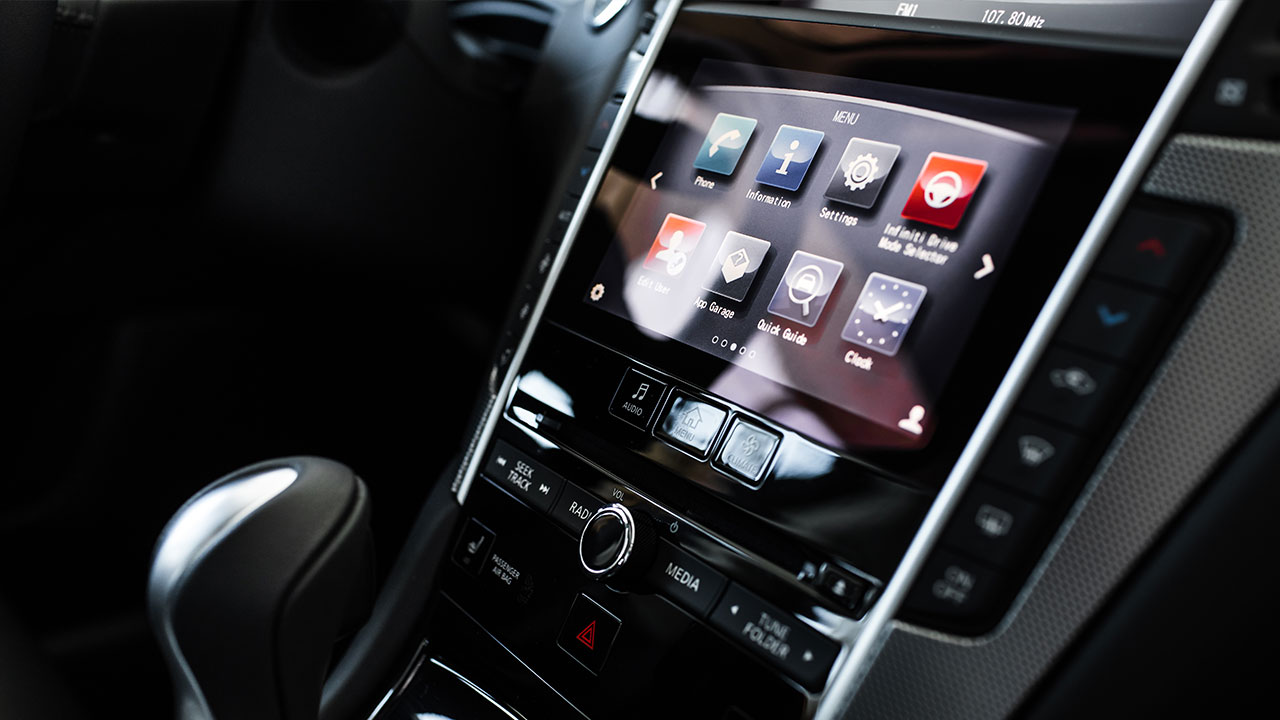

4. Infotainment & Audio Systems
Touchscreens, satellite radio, Bluetooth, and steering wheel controls are all connected through a web of harnesses. A slight mistake can kill sound, disconnect the GPS, or render the system unresponsive.
Where to watch:
- Head unit plugs (behind infotainment)
- The steering wheel button controls
- Amplifier and speaker wiring (trunk/door)
Whether part of an aftermarket automotive wiring harness or a factory install, these connectors require careful matching. Misalignment causes functionality failure.

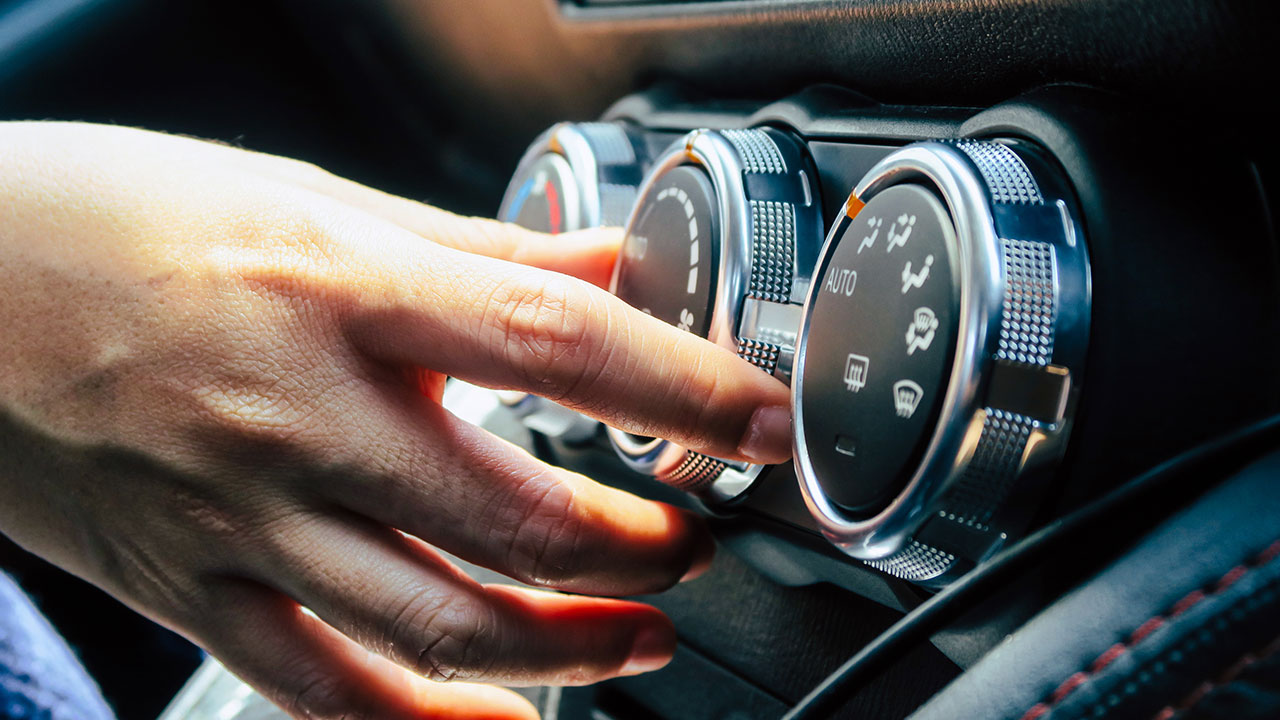

5. HVAC and Climate Control Systems
When a customer says, “The A/C’s not working,” don’t just check the compressor. Modern HVAC systems use sensors, actuators, and control modules, all linked via automotive electrical wiring kits.
Hot spots for connector issues:
- HVAC blend door actuators
- Humidity and temperature sensors
- Fan control modules
Moisture and vibration often damage these pigtails, especially in vehicles like the Chevy Malibu, Ford Edge, or Hyundai Tucson.

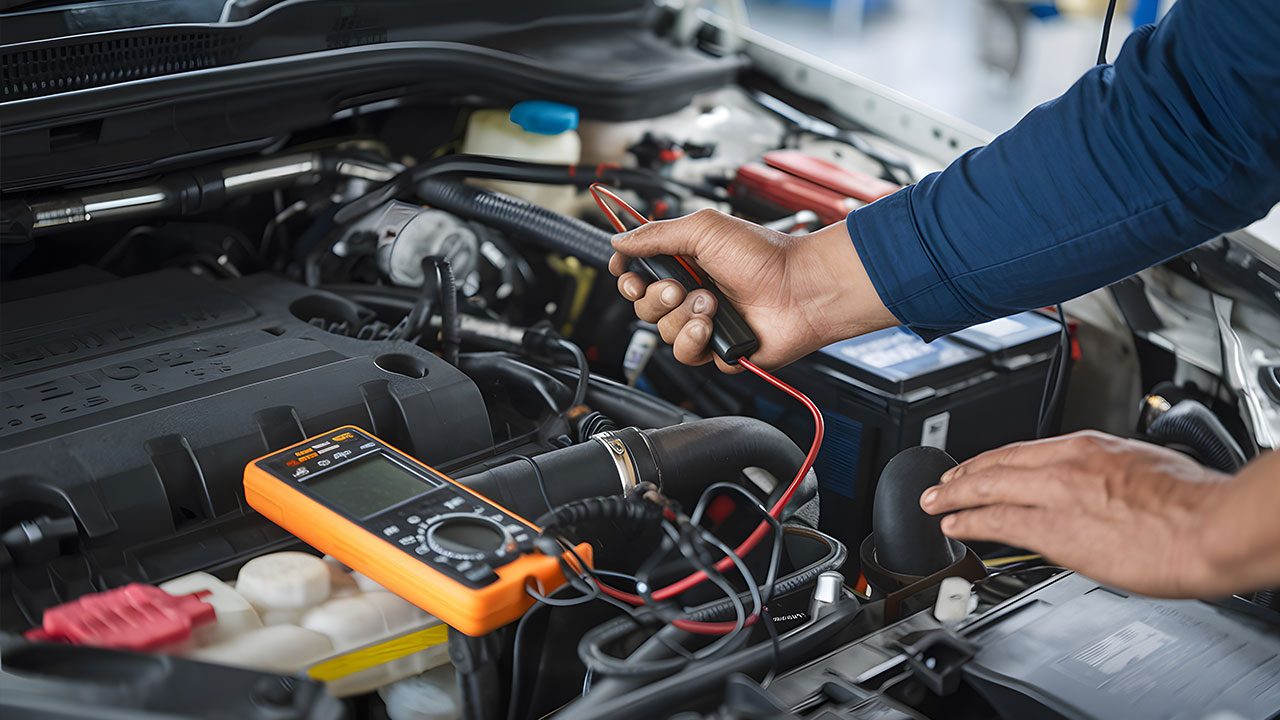

Check the Connection Before You Replace the Part
In collision repair, we're used to replacing sensors or modules when the code is unclear. But the connector often needs to be replaced.
Don't leave the connector out of the equation if you're dealing with auto electrical wiring kits, electric connectors for wiring, or any automotive wiring harness. FindPigtails.com helps you get the right connector fast to close out jobs without comebacks.
